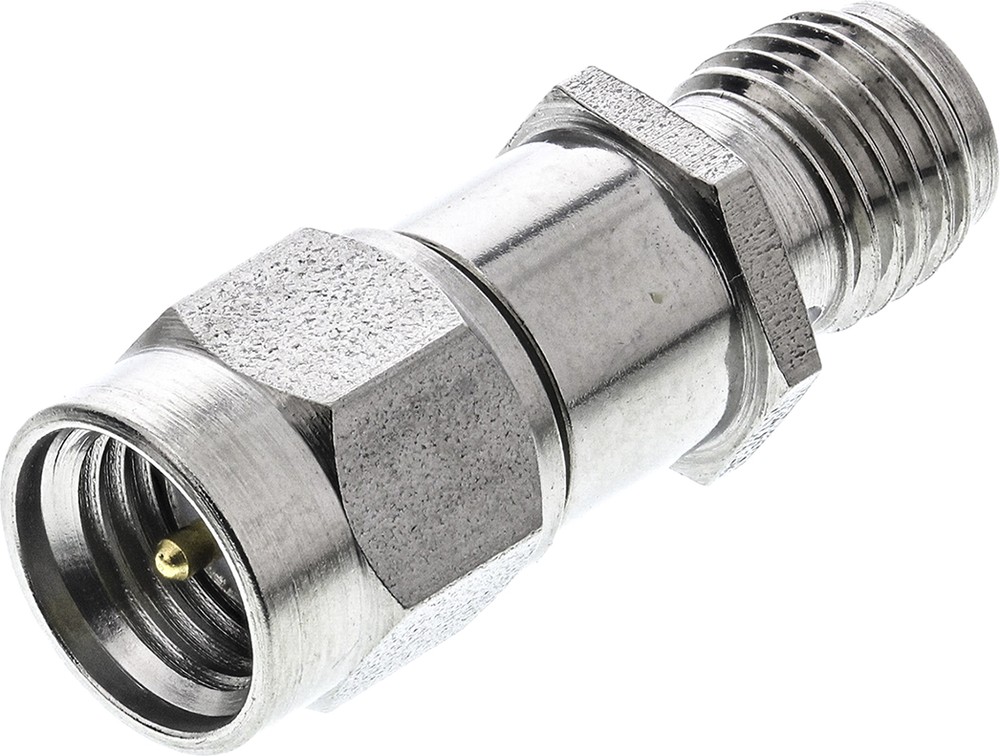

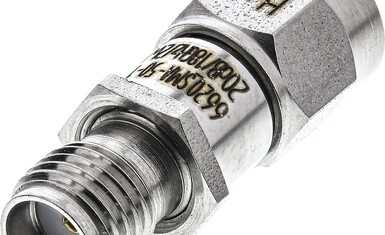

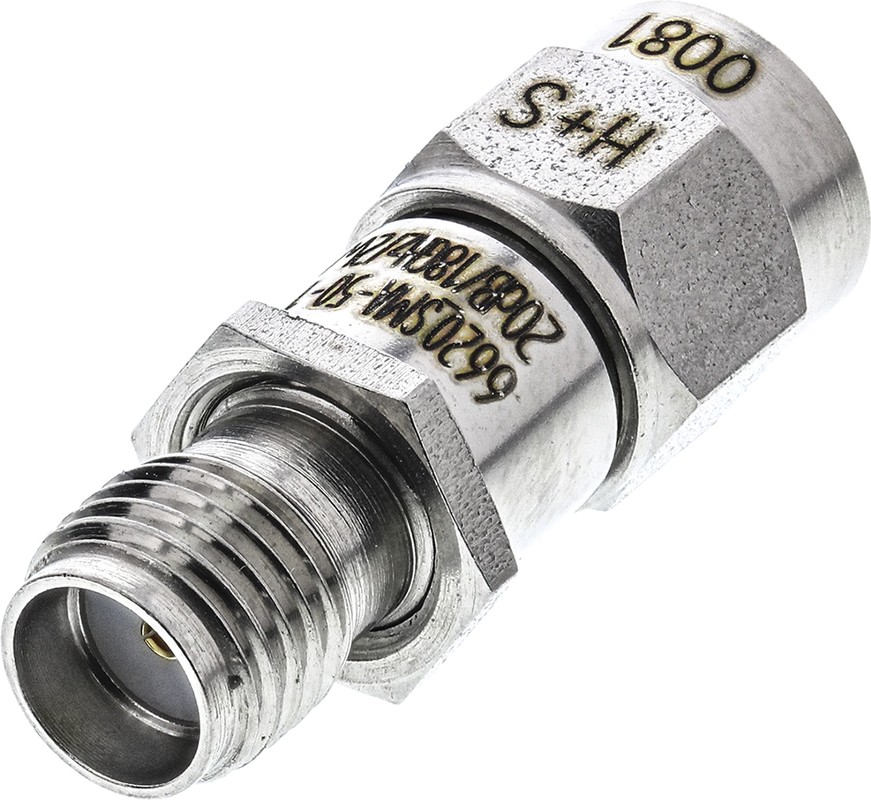

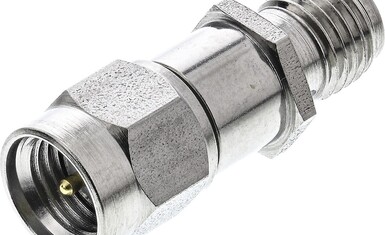

6620_SMA-50-1/199_NE, Attenuators - Interconnects SMA plug(m) to SMA jack(f), 20dB, 2W
производитель:
технические характеристики
- Brand: HUBER+SUHNER
- Connector Type: SMA
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Male/Female
- Impedance: 50 Ohms
- Manufacturer: HUBER+SUHNER
- Maximum Attenuation: 20 dB
- Maximum Frequency: 18 GHz
- Maximum Operating Temperature: +125 C
- Minimum Operating Temperature: -65 C
- Part # Aliases: 85170603
- Power Rating: 2 W
- Product Category: Attenuators-Interconnects
- Product Type: Connectorized Attenuators
- Subcategory: Attenuators
- Tolerance: 0.5 dB
- Attenuation: 20dB
- Connector Type: SMA
- Impedance: 50Ω
- Interface Type: SMA Plug to Socket
- Low Power: Yes
- Operating Frequency: DC → 18GHz
- Вес, г: 5.1
описание
Fixed RF Attenuators
HUBER+SUHNER Fixed RF Attenuators reduce the power of a signal without causing distortion to the waveform. These attenuators offer either a 50Ω or 75Ω impedance with a fixed attenuation level up to 40dB in a wide range of interfaces. The HUBER+SUHNER Fixed RF Attenuators are ideal for communications and test/measurement applications.
цена и срок поставки
Заказать
24 540,00₽
17 дн.
08.03.2026
