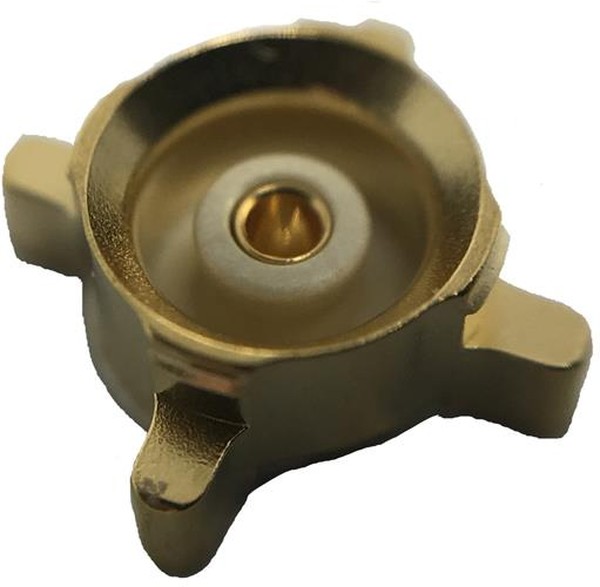

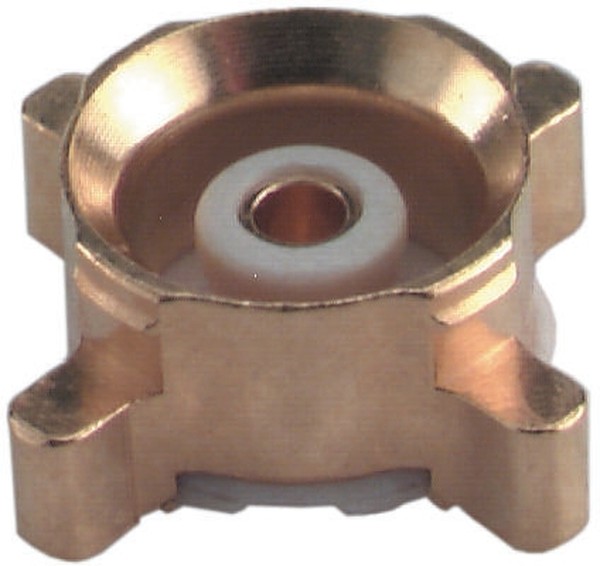

82_MMBX-S50-0-1/111_NE, RF Connectors / Coaxial Connectors MMBX straight PCB jack(f)
производитель:
технические характеристики
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Contact Material: Brass
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 12.4 GHz
- Maximum Operating Temperature: +155 C
- Minimum Operating Temperature: -55 C
- Mounting Style: SMD/SMT
- Orientation: Straight
- Part # Aliases: 23001785
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: PCB Connectors
- RF Series: MMBX
- Series: MMBX
- Subcategory: RF Interconnects
- Termination Style: Solder
- Body Orientation: Straight
- Body Plating: Gold
- Coaxial Connector Type: MMBX Connector
- Contact Material: Brass
- Contact Plating: Gold
- Gender: Male
- Impedance: 50Ω
- Mounting Type: Surface Mount
- Operating Frequency: 0 to 12.4GHz
- Termination Method: Solder
- Alias/AKA: 23001785
- COO: CH
- RoHS: Yes
- Supplier Standard Pack: 1
- Единица измерения: шт
- Вес, г: 0.305
описание
Hubner + Suhner MMBX PCB SMT connectors are for use within board to board connections, with the ability to cope with mechanical misalignment in radial and axial directions and still maintain excellent electrical performance.
цена и срок поставки
Заказать
1 740,00₽
17 дн.
08.03.2026
