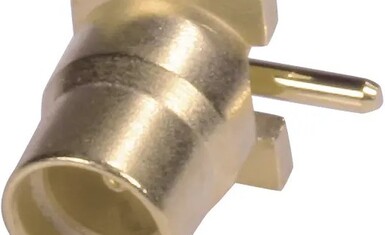

82_MMCX-50-0-8/111_OE, MMCX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
производитель:
технические характеристики
- Body Finish: Gold
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Contact Material: Brass
- Contact Plating: Gold
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 6 GHz
- Maximum Operating Temperature: +155 C
- Minimum Operating Temperature: -55 C
- Mounting Style: SMD/SMT
- Orientation: Straight
- Part # Aliases: 22652153
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: PCB Connectors
- RF Series: MMCX
- Series: MMCX
- Subcategory: RF Interconnects
- Termination Style: Solder
- Alias/AKA: 22652153
- COO: PL
- RoHS: Yes
- Supplier Standard Pack: 1
- Единица измерения: шт
- Вес, г: 0.3
описание
MMCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MMCX is easy to connect and intended for use in application where the smallest dimension have to be achieved
цена и срок поставки
Заказать
2 220,00₽
17 дн.
08.03.2026
