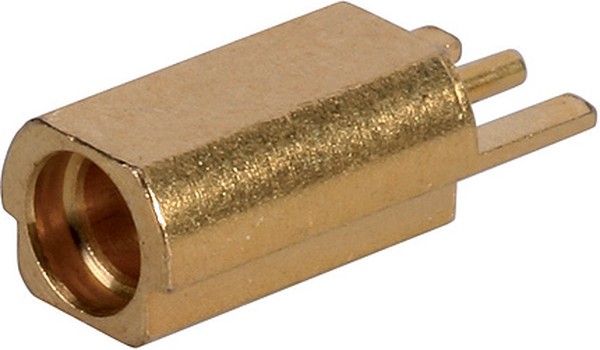

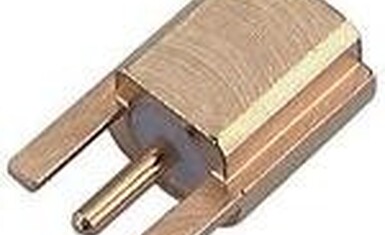

82_MMCX-S50-0-2/111_KE, Jack Surface Mount MMCX Connector, 50Ω, Solder Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Body Plating: Gold over Nickel
- Coaxial Connector Type: MMCX Connector
- Contact Material: Beryllium Copper
- Contact Plating: Gold over Nickel
- Gender: Female
- Impedance: 50Ω
- Maximum Operating Temperature: +155°C
- Minimum Operating Temperature: -55°C
- Mounting Type: Surface Mount
- Operating Frequency: 0 to 6GHz
- Termination Method: Solder
- EU RoHS: Compliant
- ECCN (US): EAR99
- Part Status: Active
- Type: MMCX
- Contact Gender: F
- Operating Frequency (Hz): 0 to 6G
- Impedance (Ohm): 50
- Polarity: Standard
- Minimum Operating Temperature (°C): -55
- Maximum Operating Temperature (°C): 155
- Product Length (mm): 4.45
- Product Depth (mm): 4.45
- Product Height (mm): 3.5
- Mounting: Surface Mount
- Body Material: Brass
- Body Style: Straight
- Mounting Style: Edge
- Operating Temp Range: -55C to 155C
- Rad Hardened: No
- Terminate To: PCB
- Termination: Solder
- Вес, г: 1
описание
HUBER+SUHMNER MMCX connectors are designed to be used where the smallest possible dimensions have to be achieved.
цена и срок поставки
Заказать
3 780,00₽
10 дн.
01.03.2026
