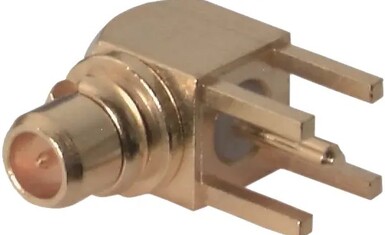

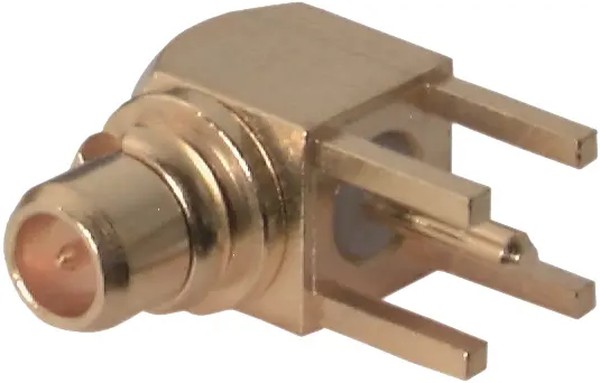

84_MMCX-50-0-1/111_OH, RF Connectors / Coaxial Connectors MMCX right angle PCB plug(m)
производитель:
технические характеристики
- Body Finish: Gold
- Body Material: Brass
- Body Style: Right Angle
- Brand: HUBER+SUHNER
- Contact Material: Brass
- Contact Plating: Gold
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 6 GHz
- Maximum Operating Temperature: +155 C
- Minimum Operating Temperature: -55 C
- Mounting Style: Through Hole
- Orientation: Right Angle
- Part # Aliases: 22658819
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: PCB Connectors
- RF Series: MMCX
- Series: MMCX
- Subcategory: RF Interconnects
- Termination Style: Solder
- Alias/AKA: 22658819
- COO: PL
- RoHS: Yes
- Supplier Standard Pack: 100
- Единица измерения: шт
- Вес, г: 0.5
описание
MMCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MMCX is easy to connect and intended for use in application where the smallest dimension have to be achieved
цена и срок поставки
Заказать
2 260,00₽
-104 дн.
08.03.2026
