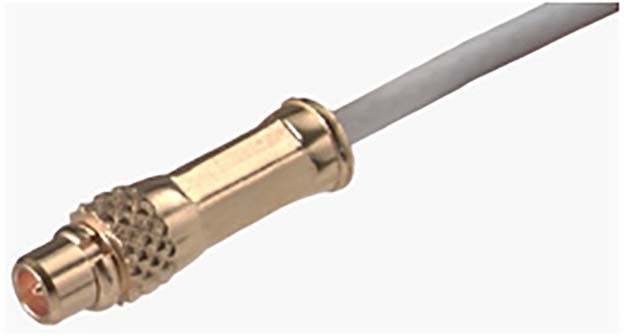

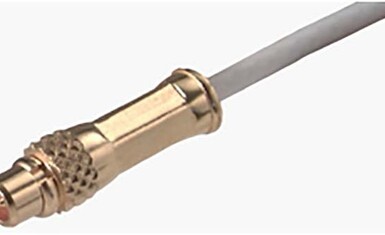

11_MMCX-50-1-2/111_OE, RF Connectors / Coaxial Connectors MMCX straight cable plug(m)
производитель:
технические характеристики
- Body Finish: Gold
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: K-01152-07
- Contact Material: Brass
- Contact Plating: Gold
- Contact Termination: Crimp
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 6 GHz
- Maximum Operating Temperature: +155 C
- Minimum Operating Temperature: -55 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 22645296
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: MMCX
- Series: MMCX
- Subcategory: RF Interconnects
- Termination Style: Crimp
- Body Orientation: Straight
- Body Plating: Brass
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: MMCX Connector
- Gender: Male
- Impedance: 50Ω
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 11_MMCX-50-1-2/111_OE
- Termination Method: Crimp
- Вес, г: 0.41
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
цена и срок поставки
Заказать
1 980,00₽
16 дн.
07.03.2026
