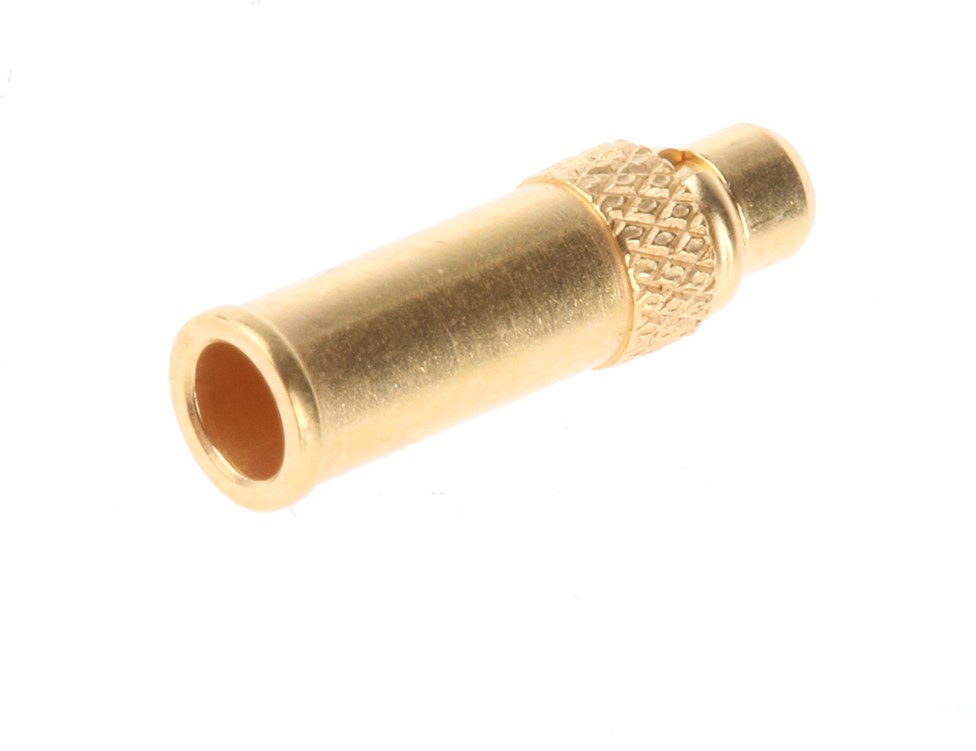

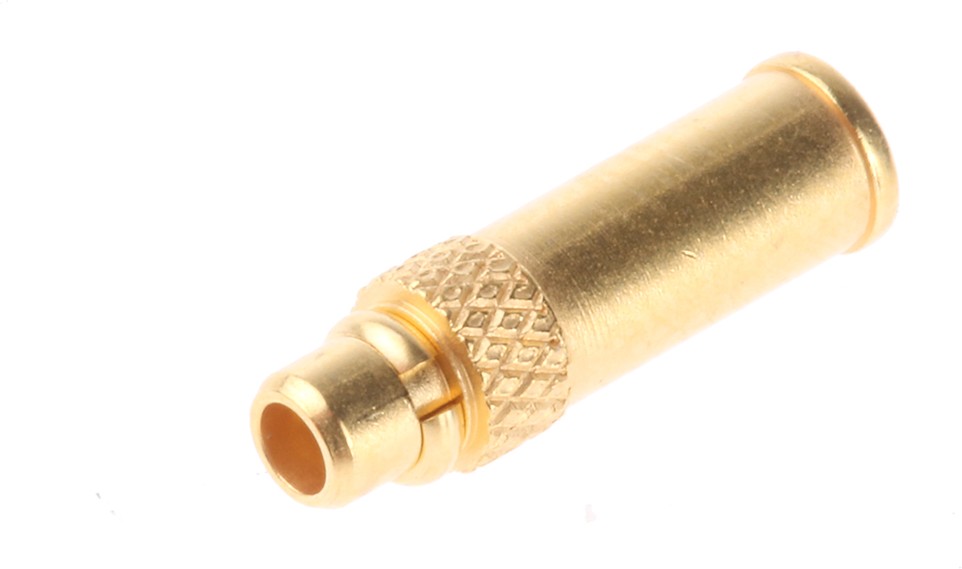

11_MMCX-50-2-1/111_OE, Plug Cable Mount MMCX Connector, 50Ω, Solder Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Body Plating: Gold
- Coaxial Connector Type: MMCX Connector
- Contact Material: Beryllium Copper
- Contact Plating: Gold over Nickel
- Gender: Male
- Impedance: 50Ω
- Maximum Operating Temperature: +155°C
- Minimum Operating Temperature: -55°C
- Mounting Type: Cable Mount
- Operating Frequency: 0 to 6GHz
- Termination Method: Solder
- Вес, г: 1
описание
HUBER+SUHMNER MMCX connectors are designed to be used where the smallest possible dimensions have to be achieved.
