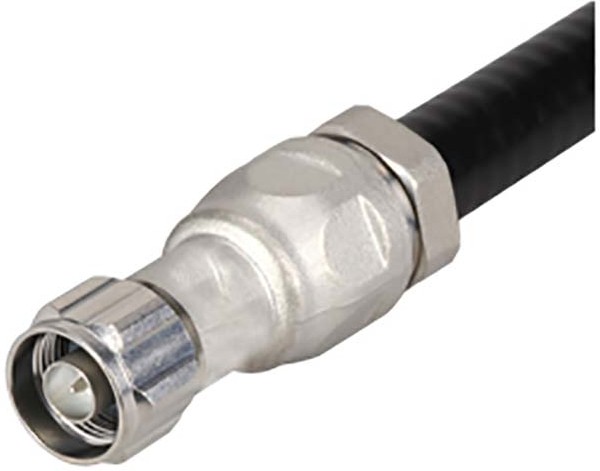

11_N-50-12-50/033_-E Series, Plug Cable Mount N Connector, 50Ω, Clamp Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Body Plating: Brass
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: N Connector
- Gender: Male
- Impedance: 50Ω
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 11_N-50-12-50/033_-E
- Termination Method: Clamp
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Contact Material: Brass
- Contact Termination: Press Fit
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- IP Rating: IP68
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 7.5 GHz
- Maximum Operating Temperature: +85 C
- Minimum Operating Temperature: -40 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 84201169
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: N Type
- Series: N
- Subcategory: RF Interconnects
- Termination Style: Clamp
- Вес, г: 92
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
цена и срок поставки
Заказать
8 450,00₽
9 дн.
28.02.2026
