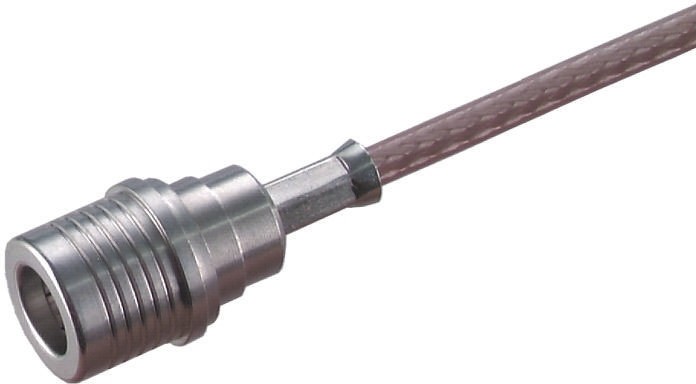

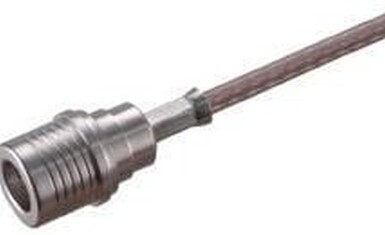

11_QMA-50-2-2/133_NE, Plug Cable Mount QMA Connector, 50Ω, Crimp Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Body Plating: Copper Alloy
- Cable Type: RG316/U
- Coaxial Connector Type: QMA Connector
- Contact Material: Brass
- Contact Plating: Gold
- Gender: Male
- Impedance: 50Ω
- Mounting Type: Cable Mount
- Operating Frequency: 0 to 11GHz
- Termination Method: Crimp
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: RG-316/U, 188A/U, 174/U, ENVIROFLEX-316
- Contact Material: Bronze
- Contact Termination: Crimp
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 18 GHz
- Maximum Operating Temperature: +85 C
- Minimum Operating Temperature: -40 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 23017720
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: QMA
- Series: QMA
- Subcategory: RF Interconnects
- Termination Style: Crimp
- Вес, г: 4
описание
The interface is based on the SMA dimensions, but instead of a threaded coupling mechanism, a new snap-lock mechanism is used.
цена и срок поставки
Заказать
6 550,00₽
9 дн.
28.02.2026
