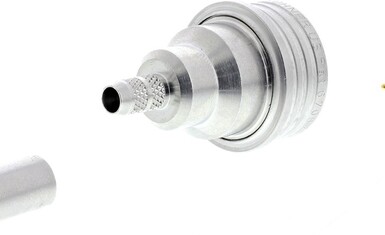

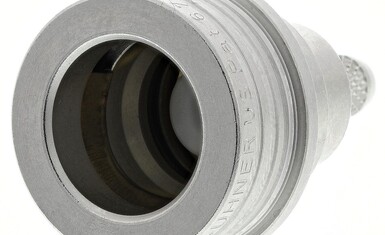

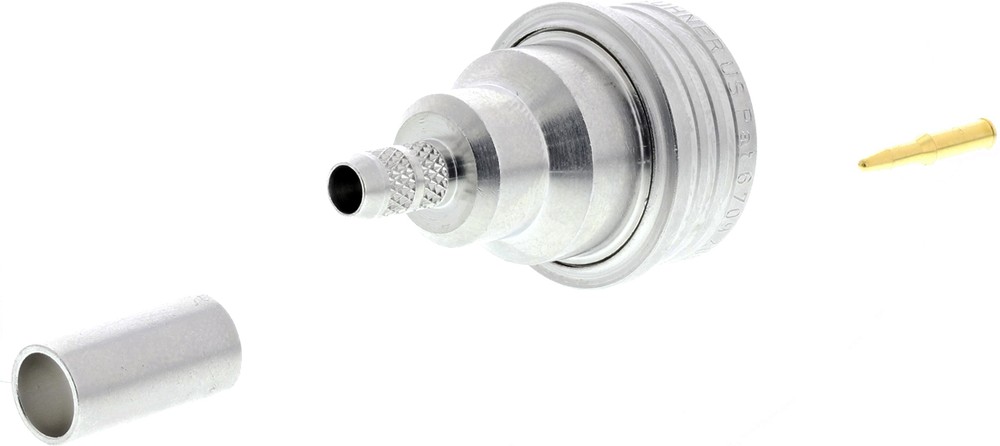

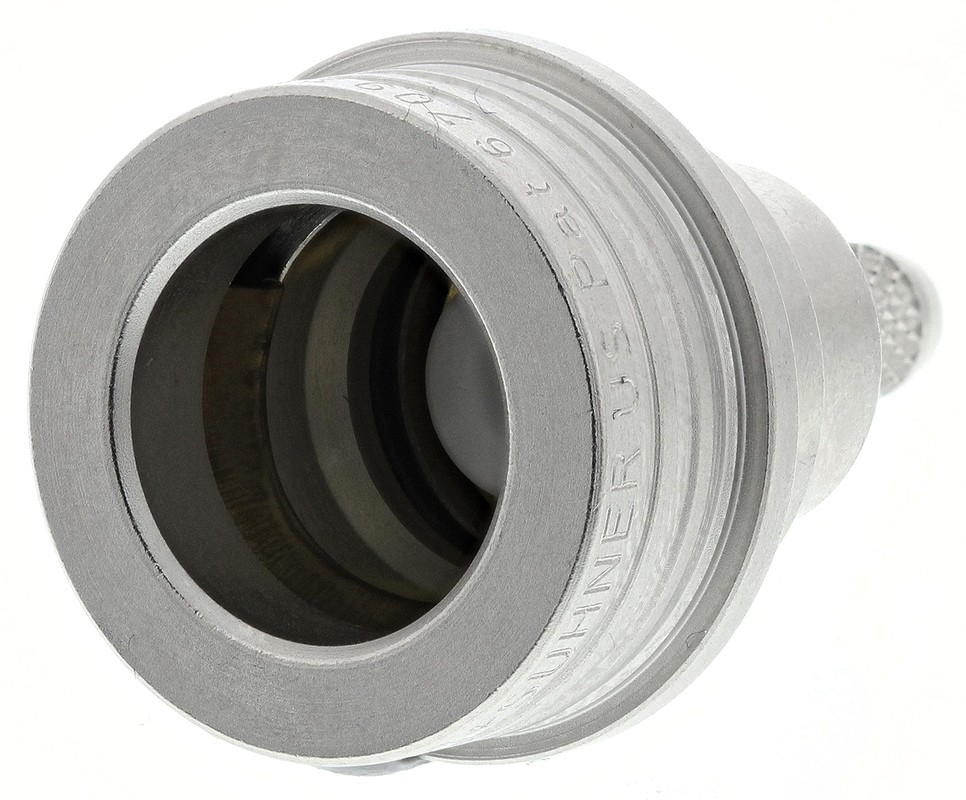

11_QN-50-3-2/133_NE, RF Connectors / Coaxial Connectors QN straight cable plug(m)
производитель:
технические характеристики
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: RG-58C/U, G-03232, GX-03272-04
- Contact Material: Brass
- Contact Termination: Crimp
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 11 GHz
- Maximum Operating Temperature: +125 C
- Minimum Operating Temperature: -40 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 23033392
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: QN
- Series: QN
- Subcategory: RF Interconnects
- Termination Style: Crimp
- Body Orientation: Straight
- Body Plating: White Bronze
- Cable Type: RG58 C/U
- Coaxial Connector Type: QN Connector
- Contact Material: Brass
- Contact Plating: Gold over Enickel
- Gender: Male
- Impedance: 50Ω
- Mounting Type: Cable Mount
- Operating Frequency: 0 to 11GHz
- Termination Method: Crimp
- Вес, г: 16.3
описание
The QN series is based on the inner dimensions and performance of the N connector; however, instead of a threaded coupling mechanism, a SNAP-ON mechanism is used, offering a time-saving and fail-safe mounting.
цена и срок поставки
Заказать
5 650,00₽
16 дн.
07.03.2026
