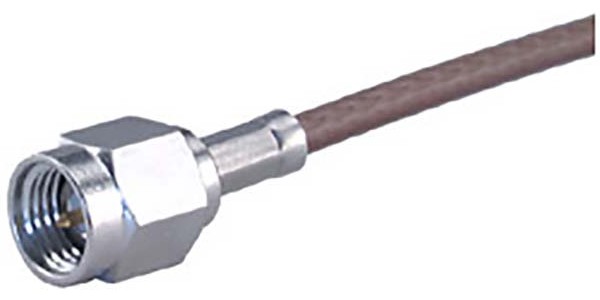

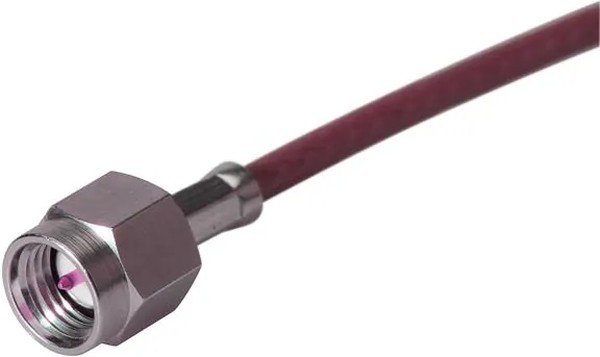

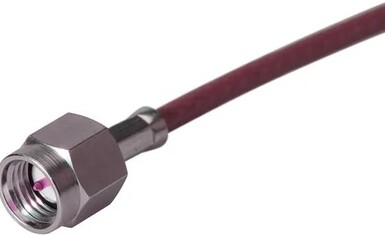

11_SMA-50-2-56/199_NE Series, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: SMA Connector
- Gender: Male
- Impedance: 50Ω
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 11_SMA-50-2-56/199_NE
- Termination Method: Crimp
- Body Material: Stainless Steel
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: ENVIROFLEX-316-D, G-02232-D, K-02252-D
- Contact Material: Stainless Steel
- Contact Termination: Solder
- Contact Type: Pin(Male)
- Factory Pack Quantity: 10
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 18 GHz
- Maximum Operating Temperature: +165 C
- Minimum Operating Temperature: -65 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 22641376
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: SMA
- Subcategory: RF Interconnects
- Termination Style: Crimp
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
цена и срок поставки
Заказать
5 920,00₽
9 дн.
28.02.2026
