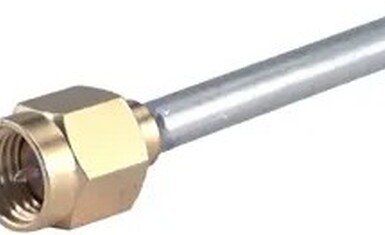

11_SMA-50-3-15/111_NE, RF Connectors / Coaxial Connectors SMA straight cable plug(m)
производитель:
технические характеристики
- Body Plating: Gold Over Nickel
- Contact Plating: Gold Over Nickel
- Gender: PL
- Impedance: 50(ohm)
- Mounting Style: Cable
- Operating Frequency: 0 to 18(Hz)
- Operating Temp Range: -65C to 165C
- Packaging: SINGLE
- Product Depth (mm): 8(mm)
- Product Length (mm): 11.3(mm)
- Rad Hardened: No
- Terminate To: Coaxial Cable
- Termination: Solder
- Type: SMA
- Alias/AKA: 22544547
- COO: CH
- RoHS: Yes
- Supplier Standard Pack: 1
- Единица измерения: шт
- Вес, г: 3.8
описание
RF COAXIAL, SMA, STRAIGHT PLUG, 50OHM; Connector Type:SMA Coaxial; Connector Body Style:Straight Plug; Coaxial Termination:Solder; Impedance:50ohm; Coaxial Cable Types:RG402; Contact Material:Beryllium Copper; Contact Plating:Gold Plated Contacts; Frequency Max:18GHz; Connector Mounting:Cable Mount; Product Range:SMA Series; SVHC:No SVHC (17-Dec-2015); Coaxial Type:RG402; Connector Mounting Orientation:Cable; Termination Method:Solder
цена и срок поставки
Заказать
2 390,00₽
16 дн.
07.03.2026
