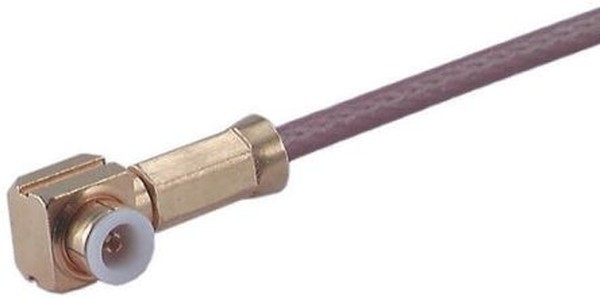

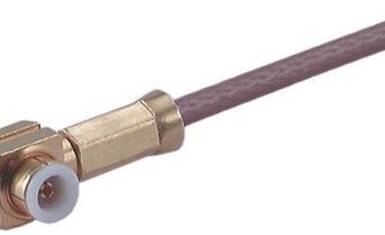

16_MMBX-50-2-1/111_NE, Plug Cable Mount MMBX Connector, 50Ω, Solder Termination, Right Angle Body
производитель:
технические характеристики
- Body Material: Brass
- Body Style: Right Angle
- Brand: HUBER+SUHNER
- Cable Type: RG-174/U, 188A/U, 316/U
- Contact Material: Beryllium Copper, Copper Alloy
- Contact Termination: Solder
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 12.4 GHz
- Maximum Operating Temperature: +155 C
- Minimum Operating Temperature: -55 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Right Angle
- Part # Aliases: 23001747
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: MMBX
- Series: MMBX
- Subcategory: RF Interconnects
- Termination Style: Crimp
- Body Orientation: Right Angle
- Body Plating: Gold over Nickel
- Cable Type: RG174/U, RG188 A/U, RG316/U
- Coaxial Connector Type: MMBX Connector
- Contact Material: Beryllium Copper
- Contact Plating: Gold over Nickel
- Gender: Male
- Impedance: 50Ω
- Mounting Type: Cable Mount
- Operating Frequency: 0 to 12.4GHz
- Termination Method: Solder
- Вес, г: 4
описание
Hubner + Suhner MBX cable connectors are for applications requiring cable to board interfacing, durable MMBX cable connectors with around 100 mating cycles and low engagement force.
цена и срок поставки
Заказать
4 320,00₽
16 дн.
07.03.2026
