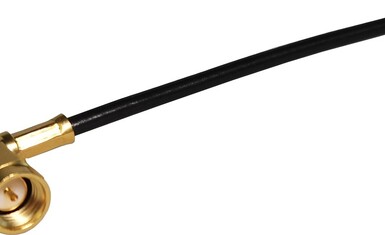

16_SMA-50-2-114/111_NE, RF Connectors / Coaxial Connectors Right Angle Cable Plug
производитель:
технические характеристики
- Body Material: Brass
- Coaxial Cable Types: GX-02272
- Contact Material: Beryllium Copper
- Contact Plating: Gold
- Frequency Max.: 18 GHz
- Gender: Plug
- Impedance: 50 Ohm
- Mounting Type: Cable Mount
- Orientation: Right Angle
- RF Connector Type: SMA
- Termination Type: Cable
- Body Orientation: Right Angle
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: SMA Connector
- Termination Method: Crimp
- Cable Group: RG-174, 316
- Center Contact Material: Beryllium Copper
- Connector Style: SMA
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Fastening Type: Threaded
- Frequency - Max: 18 GHz
- Housing Color: Gold
- Number of Ports: 1
- Shield Termination: Crimp
описание
The Huber & Suhner right angle cable plug is coaxial connector. It is made from lead free material. RoHS full compliant without exemption 6C
цена и срок поставки
Заказать
4 160,00₽
17 дн.
08.03.2026
