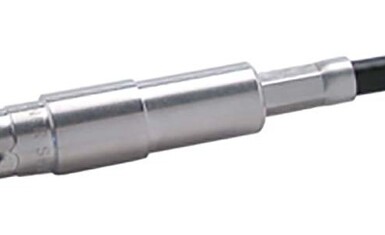

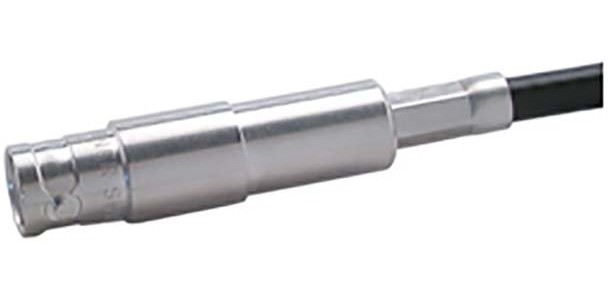

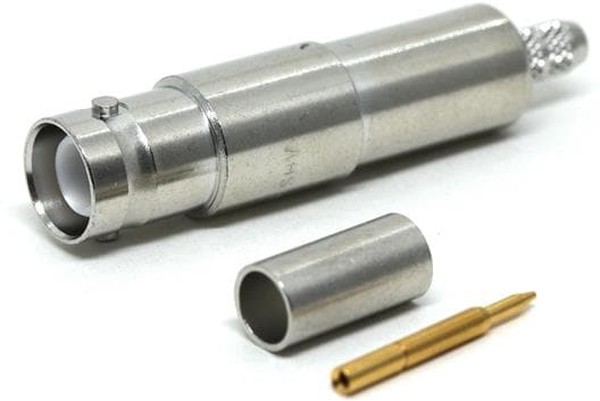

21_SHV-50-3-1/133_NE, RF Connectors / Coaxial Connectors SHV straight cable jack(f)
производитель:
технические характеристики
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: RG-58C/U, G-03232, GX-03272
- Contact Material: Brass
- Contact Termination: Crimp
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 300 MHz
- Maximum Operating Temperature: +165 C
- Minimum Operating Temperature: -65 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 22541998
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: SHV
- Series: SHV
- Subcategory: RF Interconnects
- Termination Style: Crimp
- Body Orientation: Straight
- Body Plating: Brass
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: SHV Connector
- Gender: Female
- Impedance: 50Ω
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 21_SHV-50-3-1/133_NE
- Termination Method: Crimp
- Вес, г: 18.1
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
цена и срок поставки
Заказать
20 770,00₽
17 дн.
08.03.2026
