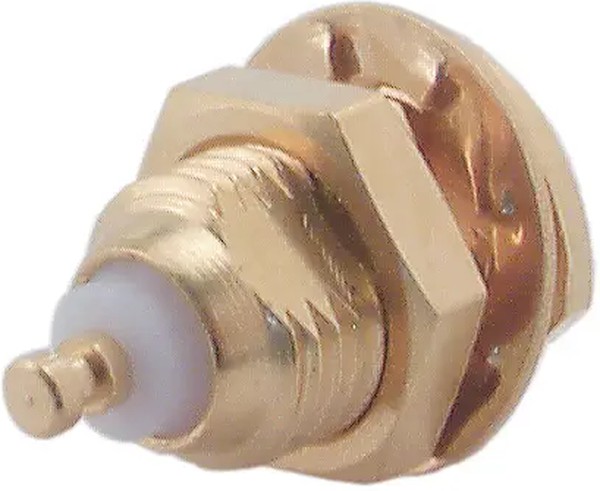

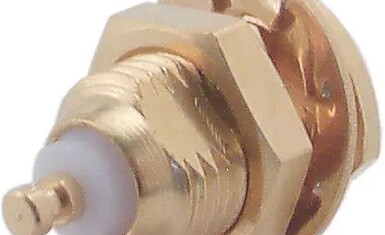

22_MCX-50-0-2/111_NH, RF Connectors / Coaxial Connectors MCX straight bulkhead receptacle jack(f)
производитель:
технические характеристики
- Body Finish: Gold
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Contact Material: Brass
- Contact Plating: Gold
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 100
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 6 GHz
- Maximum Operating Temperature: +165 C
- Minimum Operating Temperature: -65 C
- Mounting Style: Bulkhead-Front Mount
- Orientation: Straight
- Part # Aliases: 22646960
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: MCX
- Series: MCX
- Subcategory: RF Interconnects
- Termination Style: Solder
- Alias/AKA: 22646960
- COO: PL
- RoHS: Yes
- Supplier Standard Pack: 100
- Единица измерения: шт
- Вес, г: 0.75
описание
MCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MCX is a easy to connect and offers an excellent blend of size, weight, durability and performance.
цена и срок поставки
Заказать
1 700,00₽
17 дн.
08.03.2026
