технические характеристики

• Cable Group: RG-179, 187
• Center Contact Material: Beryllium Copper, Brass

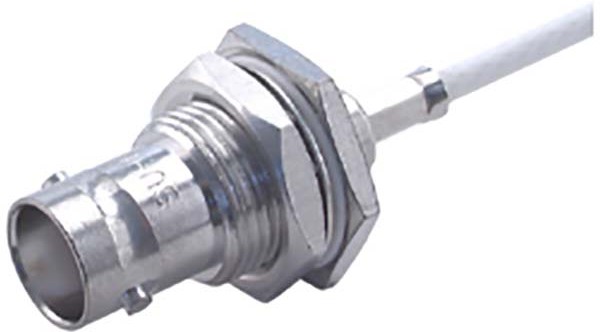

• Connector Style: BNC
• Connector Type: Jack, Female Socket
• Contact Termination: Crimp
• Fastening Type: Bayonet Lock
• Frequency - Max: 1 GHz
• Housing Color: Silver
• Impedance: 75 Ohms
• Mounting Feature: Bulkhead-Front Side Nut
• Mounting Type: Panel Mount
• Number of Ports: 1
• Shield Termination: Crimp
• Body Orientation: Straight
• Body Plating: Brass
• Bulkhead: Yes
• Cable Type: Coaxial
• Gender: Female
• Polarity: Normal
• Series: 24_BNC-75-2-6/133_NE
• Termination Method: Crimp
• Brand: Huber+Suhner
• Coaxial Connector Type: BNC Connector
