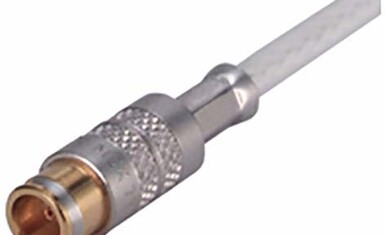

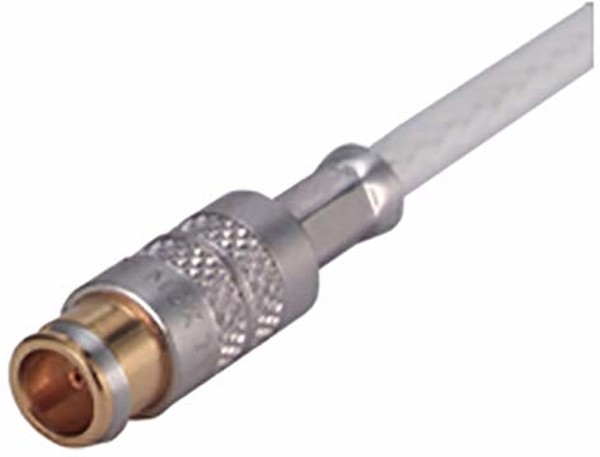

24_MCX-75-2-1/113_NE, RF Connectors / Coaxial Connectors MCX straight bulkhead cable jack(f)
производитель:
технические характеристики
- Body Finish: Copper-Tin-Zinc Alloy
- Body Material: Brass
- Body Style: Bulkhead
- Brand: HUBER+SUHNER
- Cable Type: RG-179B/U, 187A/U, ENVIROFLEX-179
- Contact Material: Beryllium Copper, Copper Alloy
- Contact Plating: Gold
- Contact Termination: Crimp
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 75 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 6 GHz
- Maximum Operating Temperature: +155 C
- Minimum Operating Temperature: -55 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 22646948
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: MCX
- Series: MCX
- Subcategory: RF Interconnects
- Termination Style: Crimp
- Body Orientation: Straight
- Bulkhead: Yes
- Cable Type: Coaxial
- Coaxial Connector Type: MCX Connector
- Gender: Female
- Impedance: 75Ω
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 24_MCX-75-2-1/113_NE
- Termination Method: Crimp
- Вес, г: 2.4
описание
The Huber & Suhner coaxial connector has 75 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
цена и срок поставки
Заказать
4 980,00₽
17 дн.
08.03.2026
