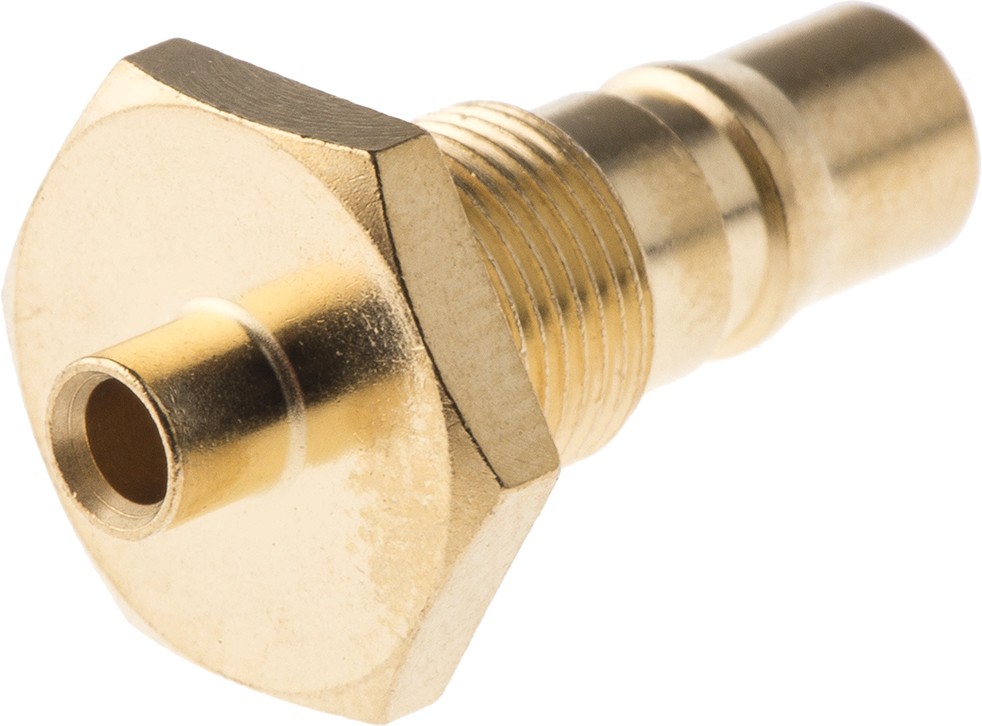

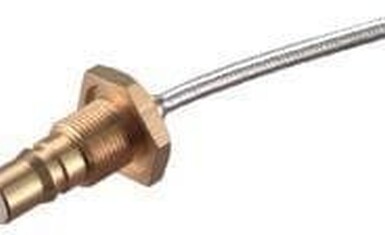

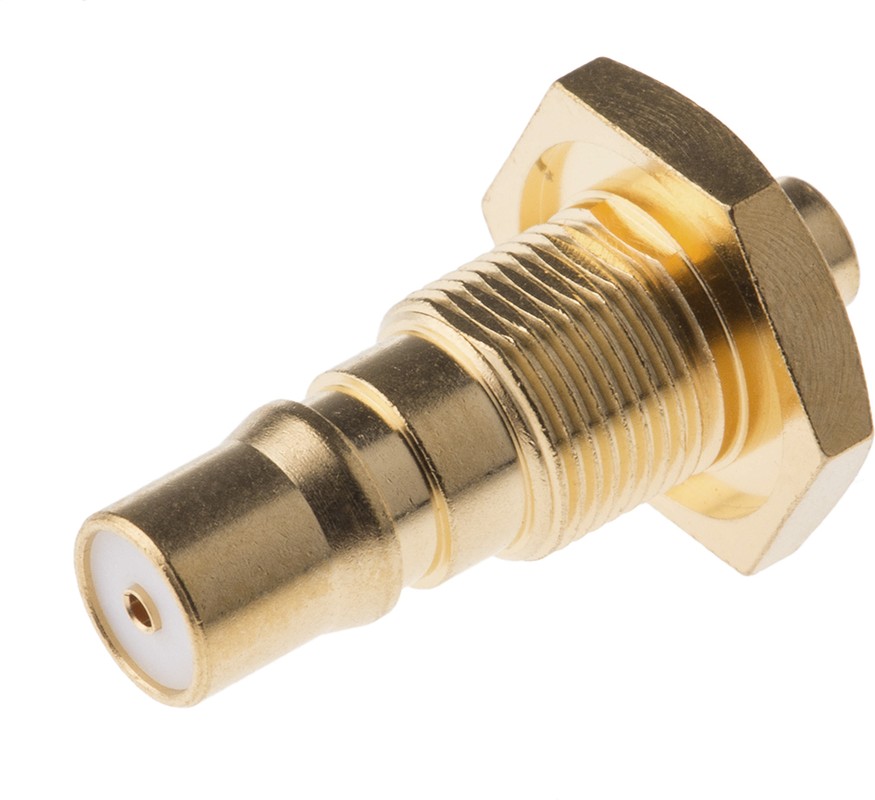

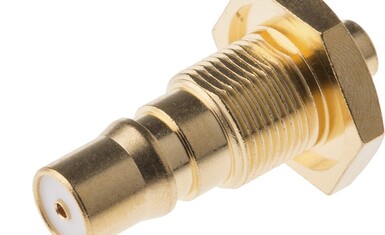

24_QMA-50-2-1/111_NE, Jack Panel Mount QMA Connector, 50Ω, Solder Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Body Plating: Gold
- Cable Type: Sucoform 86
- Coaxial Connector Type: QMA Connector
- Contact Material: Bronze
- Contact Plating: Gold
- Gender: Female
- Impedance: 50Ω
- Mounting Type: Panel Mount
- Operating Frequency: 0 to 11GHz
- Termination Method: Solder
- Body Material: Brass
- Body Style: Bulkhead
- Brand: HUBER+SUHNER
- Cable Type: SUCOFORM-86, EZ-86-TP-M17, MULTIFLEX-86
- Contact Material: Brass
- Contact Termination: Press Fit
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 6 GHz
- Maximum Operating Temperature: +85 C
- Minimum Operating Temperature: -40 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 23017742
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: QMA
- Series: QMA
- Subcategory: RF Interconnects
- Termination Style: Solder
описание
The interface is based on the SMA dimensions, but instead of a threaded coupling mechanism, a new snap-lock mechanism is used.
цена и срок поставки
Заказать
7 270,00₽
10 дн.
01.03.2026
