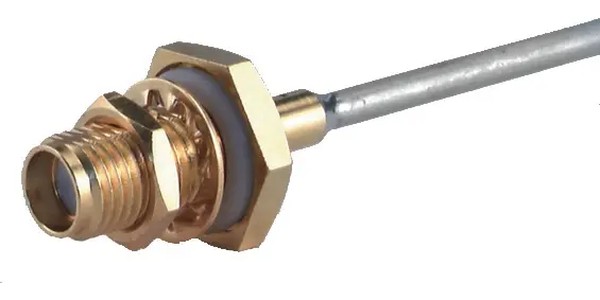

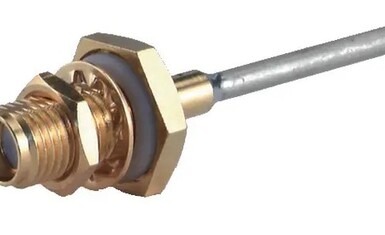

24_SMA-50-2-15/111_NE, RF Connectors / Coaxial Connectors SMA straight bulkhead cable jack(f)
производитель:
технические характеристики
- Body Finish: Gold
- Body Material: Beryllium Copper, Copper Alloy
- Body Style: Bulkhead
- Brand: HUBER+SUHNER
- Cable Type: EZ-86-TP-M17, MULTIFLEX-86, SUCOFORM-86
- Contact Material: Beryllium Copper, Copper Alloy
- Contact Plating: Gold
- Contact Termination: Solder
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 18 GHz
- Maximum Operating Temperature: +165 C
- Minimum Operating Temperature: -65 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 22544532
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: SMA
- Series: SMA
- Subcategory: RF Interconnects
- Termination Style: Solder
- Alias/AKA: 22544532
- COO: CN
- RoHS: Yes
- Supplier Standard Pack: 1
- Единица измерения: шт
- Вес, г: 3.8
описание
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, tes
цена и срок поставки
Заказать
5 220,00₽
17 дн.
08.03.2026
