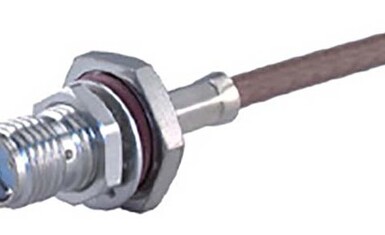

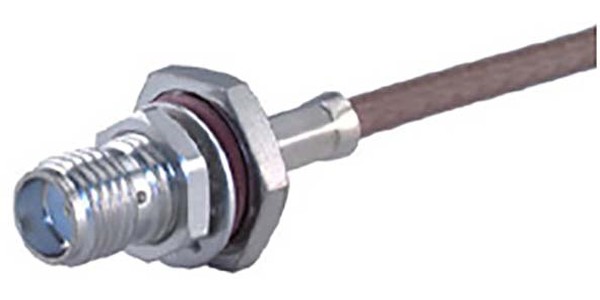

24_SMA-50-2-46/133_NH, RF Connectors / Coaxial Connectors SMA straight bulkhead cable jack(f)
производитель:
технические характеристики
- Body Material: Brass
- Body Style: Bulkhead
- Brand: HUBER+SUHNER
- Cable Type: RG-174/U, 188A/U, 316/U
- Contact Material: Brass
- Contact Termination: Solder
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 18 GHz
- Maximum Operating Temperature: +165 C
- Minimum Operating Temperature: -65 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 22646565
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: SMA
- Series: SMA
- Subcategory: RF Interconnects
- Termination Style: Crimp
- Body Orientation: Straight
- Body Plating: Brass
- Bulkhead: Yes
- Cable Type: Coaxial
- Coaxial Connector Type: SMA Connector
- Gender: Female
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 24_SMA-50-2-46/133_NH
- Termination Method: Crimp
- Вес, г: 4.89
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
