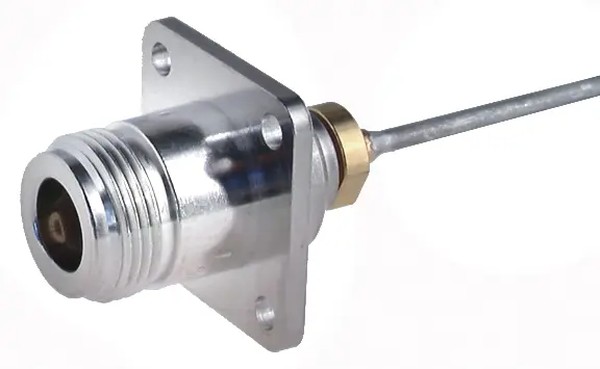

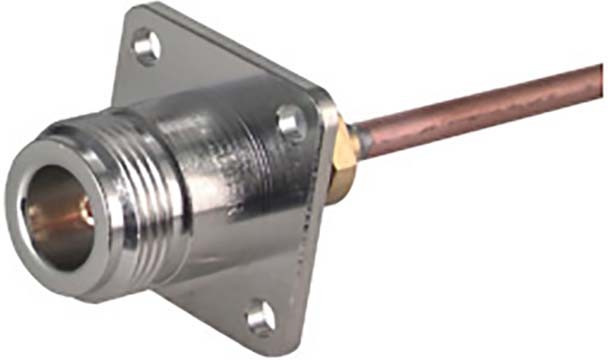

25_N-50-2-14/133_NE, RF Connectors / Coaxial Connectors N straight flange cable jack(f)
производитель:
технические характеристики
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: EZ-86-TP-M17, SUCOFORM-86
- Contact Material: Brass
- Contact Termination: Solder
- Contact Type: Socket(Female)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Jack(Socket)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 18 GHz
- Maximum Operating Temperature: +165 C
- Minimum Operating Temperature: -65 C
- Mounting Style: Flange Mount
- Orientation: Straight
- Part # Aliases: 22641303
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: N Type
- Series: N
- Subcategory: RF Interconnects
- Termination Style: Solder
- Body Orientation: Straight
- Body Plating: Brass
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: N Connector
- Gender: Female
- Impedance: 50Ω
- Mounting Type: Flange Mount
- Polarity: Normal
- Series: 25_N-50-2-14/133_NE
- Alias/AKA: 22641303
- COO: CN
- RoHS: Yes
- Supplier Standard Pack: 1
- Единица измерения: шт
- Вес, г: 42.7
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield.
