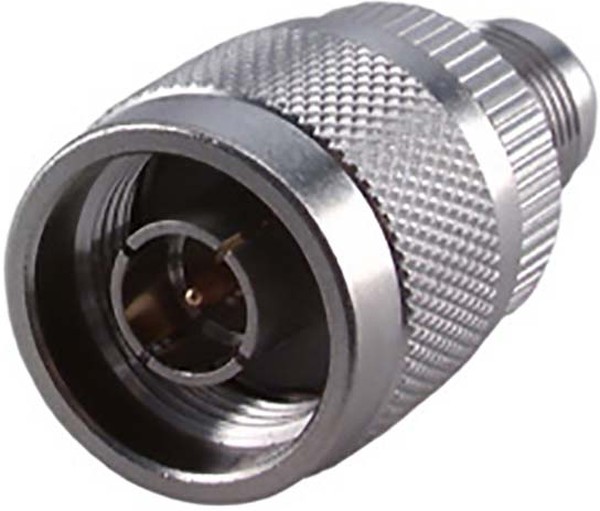

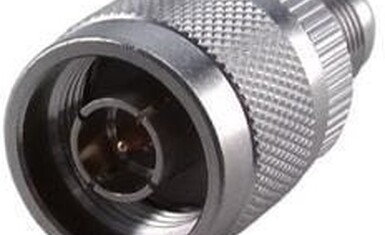

33_N-TNC-50-1/133_NE, Adapter Coaxial Connector N Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
производитель:
технические характеристики
- Adapter Type: N Plug to TNC Plug
- Adapter Type B: TNC Plug
- Body Orientation: Straight
- Gender A: Male
- Gender B: Female
- Impedance: 50Ω
- Operating Frequency: 11GHz
- Body Material: Brass
- Brand: HUBER+SUHNER
- Contact Material: Beryllium Copper
- Contact Plating: Gold
- Factory Pack Quantity: Factory Pack Quantity: 1
- Frequency Range: DC to 11 GHz
- Impedance: 50 Ohms
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 11 GHz
- Mounting Style: Free Hanging
- Orientation: Straight
- Part # Aliases: 22542427
- Product Category: RF Adapters-Between Series
- Product Type: RF Adapters-Between Series
- Side 1 Gender: Plug(Male)
- Side 1 Polarity: Normal
- Side 1 RF Series: N
- Side 2 Gender: Jack(Female)
- Side 2 Polarity: Normal
- Side 2 RF Series: TNC
- Subcategory: RF Adapters
описание
The Huber & Suhner coaxial adapters has 50 Ohm impedance. It has 11 GHz impedance frequency. The RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.
цена и срок поставки
Заказать
16 560,00₽
17 дн.
08.03.2026
