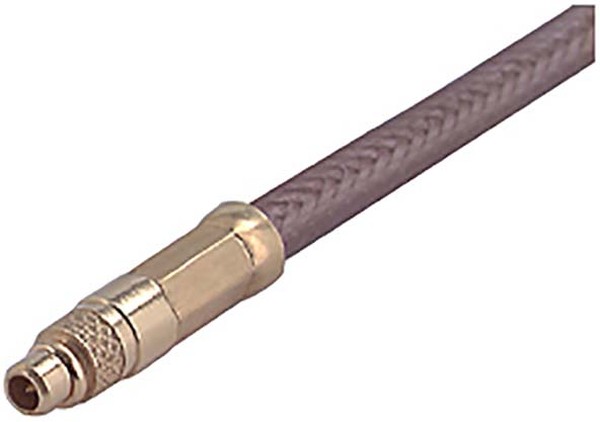

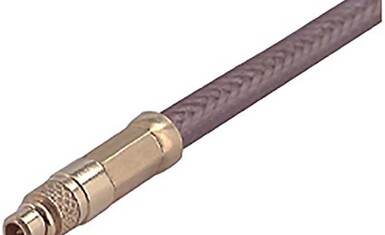

11_MMCX-50-2-3/111_OH Series, Plug Cable Mount MMCX Connector, Crimp Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Body Plating: Brass
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: MMCX Connector
- Gender: Male
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 11_MMCX-50-2-3/111_OH
- Termination Method: Crimp
- Body Finish: Gold
- Body Material: Brass
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: RG-316/U, 188A/U, 174/U, ENVIROFLEX-316
- Contact Material: Brass
- Contact Plating: Gold
- Contact Termination: Crimp
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 6 GHz
- Maximum Operating Temperature: +155 C
- Minimum Operating Temperature: -55 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 23000258
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: MMCX
- Series: MMCX
- Subcategory: RF Interconnects
- Termination Style: Crimp
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 6 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
цена и срок поставки
Заказать
2 360,00₽
9 дн.
28.02.2026
