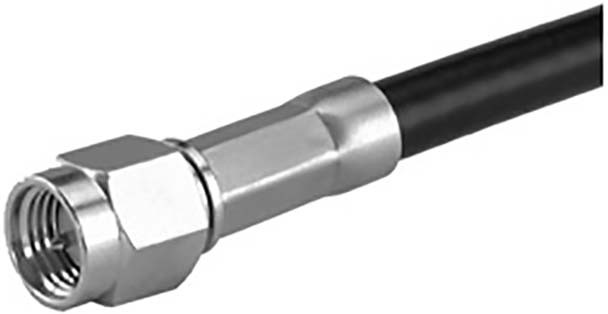

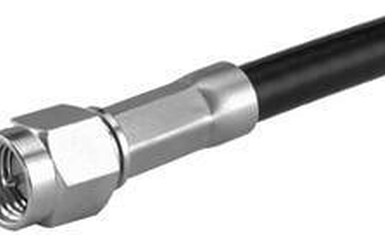

11_SMA-50-3-56/199_NH Series, Plug Cable Mount SMA Connector, Crimp Termination, Straight Body
производитель:
технические характеристики
- Body Orientation: Straight
- Bulkhead: No
- Cable Type: Coaxial
- Coaxial Connector Type: SMA Connector
- Gender: Male
- Mounting Type: Cable Mount
- Polarity: Normal
- Series: 11_SMA-50-3-56/199_NH
- Termination Method: Crimp
- Body Material: Stainless Steel
- Body Style: Straight
- Brand: HUBER+SUHNER
- Cable Type: RG-223/U, 142B/U, 400/U, 400/U
- Contact Material: Stainless Steel
- Contact Termination: Solder
- Contact Type: Pin(Male)
- Factory Pack Quantity: Factory Pack Quantity: 1
- Gender: Plug(Pin)
- Impedance: 50 Ohms
- Isolation: Non-Isolated
- Manufacturer: HUBER+SUHNER
- Maximum Frequency: 18 GHz
- Maximum Operating Temperature: +165 C
- Minimum Operating Temperature: -65 C
- Mounting Style: Cable Mount/Free Hanging
- Orientation: Straight
- Part # Aliases: 22648300
- Polarity: Standard
- Product Category: RF Connectors/Coaxial Connectors
- Product Type: RF Connectors/Coaxial Connectors
- Product: Connectors
- RF Series: SMA
- Series: SMA
- Subcategory: RF Interconnects
- Termination Style: Crimp
описание
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
цена и срок поставки
Заказать
1 570,00₽
9 дн.
28.02.2026
